L-900
8mm/12mm/16mm/24mm Splicing Machine
Automatic splicing machine is an integral part of the modern MES (Manufacturing Execution System) in the SMT factory. Integration requires equipment and the MES to work seamlessly, and also requires the equipment to function with a high degree of automation. L-900 Automatic splicing machine not only can fulfill the above requirements, but also deliver unsurpassed splicing reliability to drive improved yields and utilization.
Features
-
Automatic splicing for 8\12\16\24mm width carrier tapes (01005 capable)
-
Carrier tape thickness 0.25–1.4mm (paper) and 0.25-7.5mm (embossed) applicable
-
Continuous operation for up to 16 hours once fully charged
-
Up to 98% FPY
-
Bluetooth and Wi-Fi connectivity to the factory MES
-
Superior adhesive strength in comparison with traditional splice tape connector, thus enhancing splicing reliability
-
Validation function available in both stand-alone and online mode
-
Power-assisted (motor powered) wheels to facilitate movement on the shop floor
-
Empty-pocket detection using vision inspection

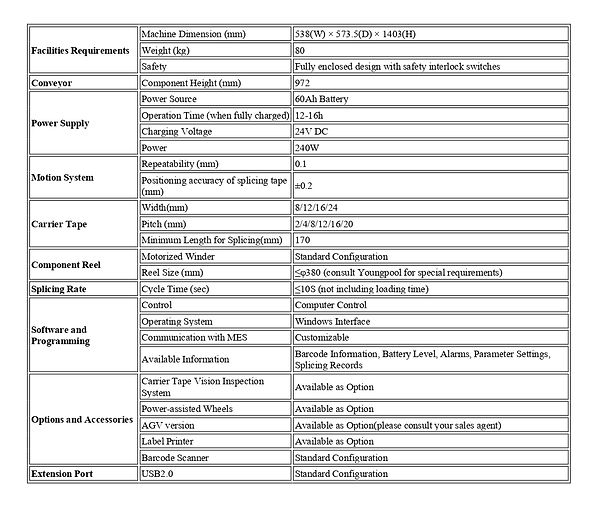

Specification
